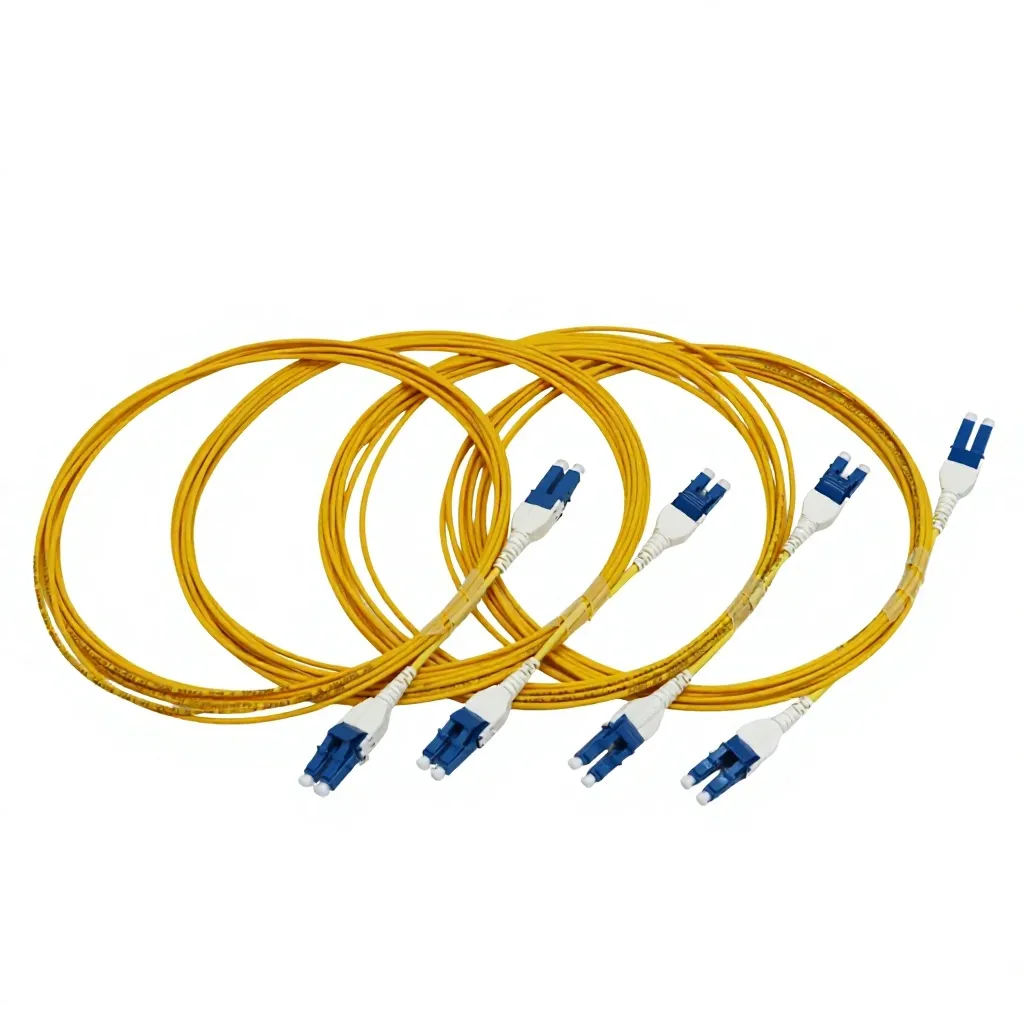

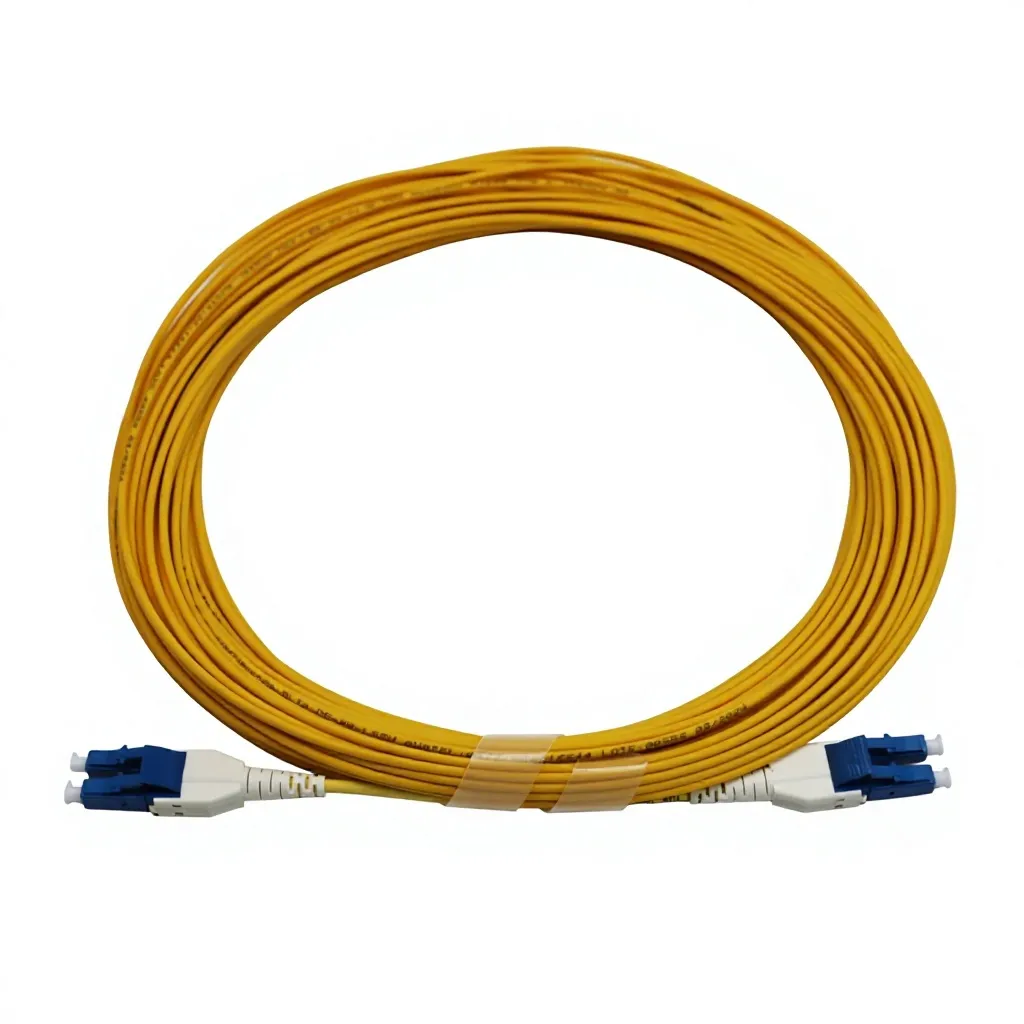

Uniboot LC Duplex Fiber Optic Patch Cord — Push-Pull Tab & Switchable Polarity
LC uniboot duplex patch cord with push-pull tab for easy extraction in high-density environments. Switchable polarity design saves 50% cable space versus standard duplex cables.
| Specification | Detail |
|---|---|
| CONNECTOR TYPE | LC/UPC – LC/UPC (Uniboot) |
| FIBER MODE | Single Mode G.657A1 (9/125µm) |
| FIBER COUNT | 2 Fibers (Duplex in single boot) |
| INSERTION LOSS | ≤0.15dB |
| RETURN LOSS | ≥55dB (UPC) |
| DURABILITY | ≥1000 mating cycles |
| CONNECTOR TYPE | LC/UPC – LC/UPC (Uniboot) |
| FIBER MODE | Single Mode G.657A1 (9/125µm) |
| FIBER COUNT | 2 Fibers (Duplex in single boot) |
| CABLE DIAMETER | 2.0mm |
| JACKET MATERIAL | LSZH |
| JACKET COLOR | Yellow |
| WAVELENGTH | 1310nm / 1550nm |
| INSERTION LOSS | ≤0.15dB |
| RETURN LOSS | ≥55dB (UPC) |
| POLARITY | Tool-free switchable (A/B) |
| BEND-INSENSITIVE | Yes (G.657A1) |
| DURABILITY | ≥1000 mating cycles |
| OPERATING TEMPERATURE | -20°C to +70°C |
| STANDARDS | IEC 61754-20 · TIA-604-10 (FOCIS 10) · Telcordia GR-326 |
Engineered For Performance
50% Space Savings
Both fibers housed in a single compact boot and cable, using half the cable tray and pathway space of standard duplex patch cords.
Push-Pull Tab Extraction
Integrated push-pull tab enables single-finger connector removal from high-density patch panels without disturbing adjacent ports.
Tool-Free Polarity Switching
Fiber polarity can be switched between A-B and B-A configurations without tools, simplifying installation and reducing spare inventory.
Bend-Insensitive G.657A1 Fiber
G.657A1 bend-insensitive fiber handles the tight routing required in high-density environments without signal degradation.
Typical Applications
High-Density Data Centers
Space-constrained patch panel environments where traditional duplex cables create congestion and impede airflow.
Top-of-Rack Patching
Server rack jumper cables where push-pull tabs simplify moves, adds, and changes in densely populated equipment racks.
Structured Cabling Cross-Connects
Main and intermediate cross-connect applications where switchable polarity reduces the number of unique cable SKUs required.
