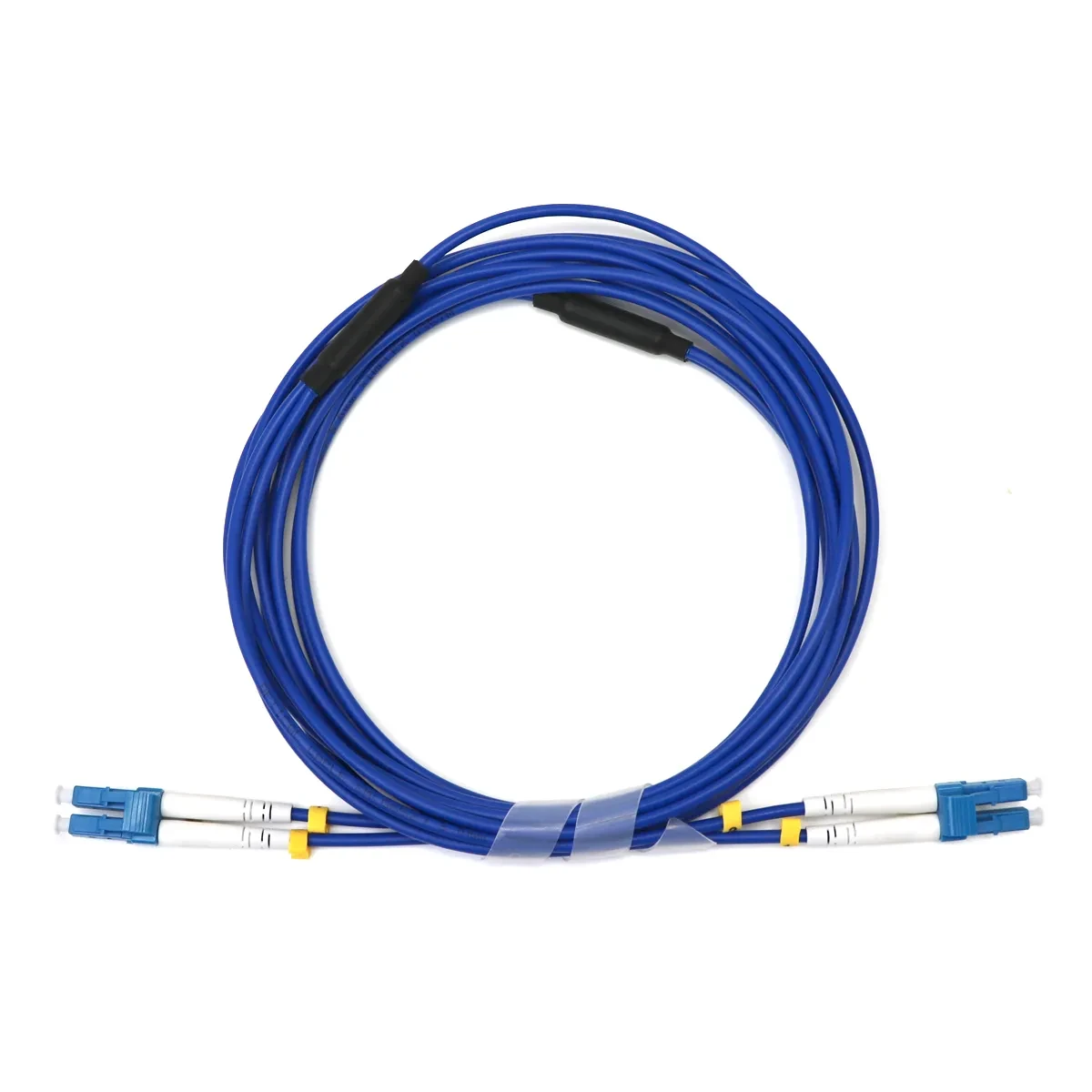

Armored Fiber Optic Patch Cord — Stainless Steel Crush-Proof Protection
Armored fiber patch cord with stainless steel spiral tube protection. Crush-proof, rodent-resistant design for indoor/outdoor deployment. Available with LC, SC, FC, and ST connectors.
| Specification | Detail |
|---|---|
| CONNECTOR TYPE | LC, SC, FC, ST (Any combination) |
| FIBER MODE | Single Mode / Multimode |
| FIBER COUNT | Simplex / Duplex |
| RETURN LOSS | ≥45dB – 60dB |
| OPERATING TEMPERATURE | -40°C to +80°C |
| CONNECTOR TYPE | LC, SC, FC, ST (Any combination) |
| FIBER MODE | Single Mode / Multimode |
| FIBER COUNT | Simplex / Duplex |
| CABLE DIAMETER | 0.9mm – 3.0mm |
| ARMOR TYPE | Stainless Steel Spiral Tube |
| JACKET MATERIAL | PVC / LSZH over armor |
| INSERTION LOSS (SM) | ≤0.2dB |
| INSERTION LOSS (MM) | ≤ 0.1dB |
| RETURN LOSS | ≥45dB – 60dB |
| ANTI-TENSILE STRENGTH | >70N |
| CABLE WEIGHT | 23.5 kg/km |
| OPERATING TEMPERATURE | -40°C to +80°C |
| STANDARDS | IEC 61754 · Telcordia GR-326 |
Engineered For Performance
Crush-Proof Steel Armor
Continuous stainless steel spiral tube provides 360-degree protection against crushing, kinking, and physical damage during installation and operation.
Rodent-Resistant Design
Metal armor effectively prevents rodent and animal damage, a critical advantage for deployments in cable trays, raised floors, and outdoor enclosures.
Extended Temperature Range
Operating range of -40°C to +80°C supports deployment in demanding environments from cold storage facilities to industrial plants.
Multiple Connector Options
Available with any standard connector combination (LC, SC, FC, ST, MTRJ, MU, MPO) to match existing infrastructure requirements.
Typical Applications
Harsh Industrial Environments
Manufacturing floors, utility infrastructure, and outdoor enclosures where cables face physical abuse, rodents, or extreme temperatures.
Data Center Under-Floor Cabling
Raised floor environments where cables may be stepped on, crushed by equipment, or exposed to rodent activity.
Outdoor Deployments
Pole-mount, aerial, and direct-burial applications requiring ruggedized protection beyond standard indoor patch cords.
