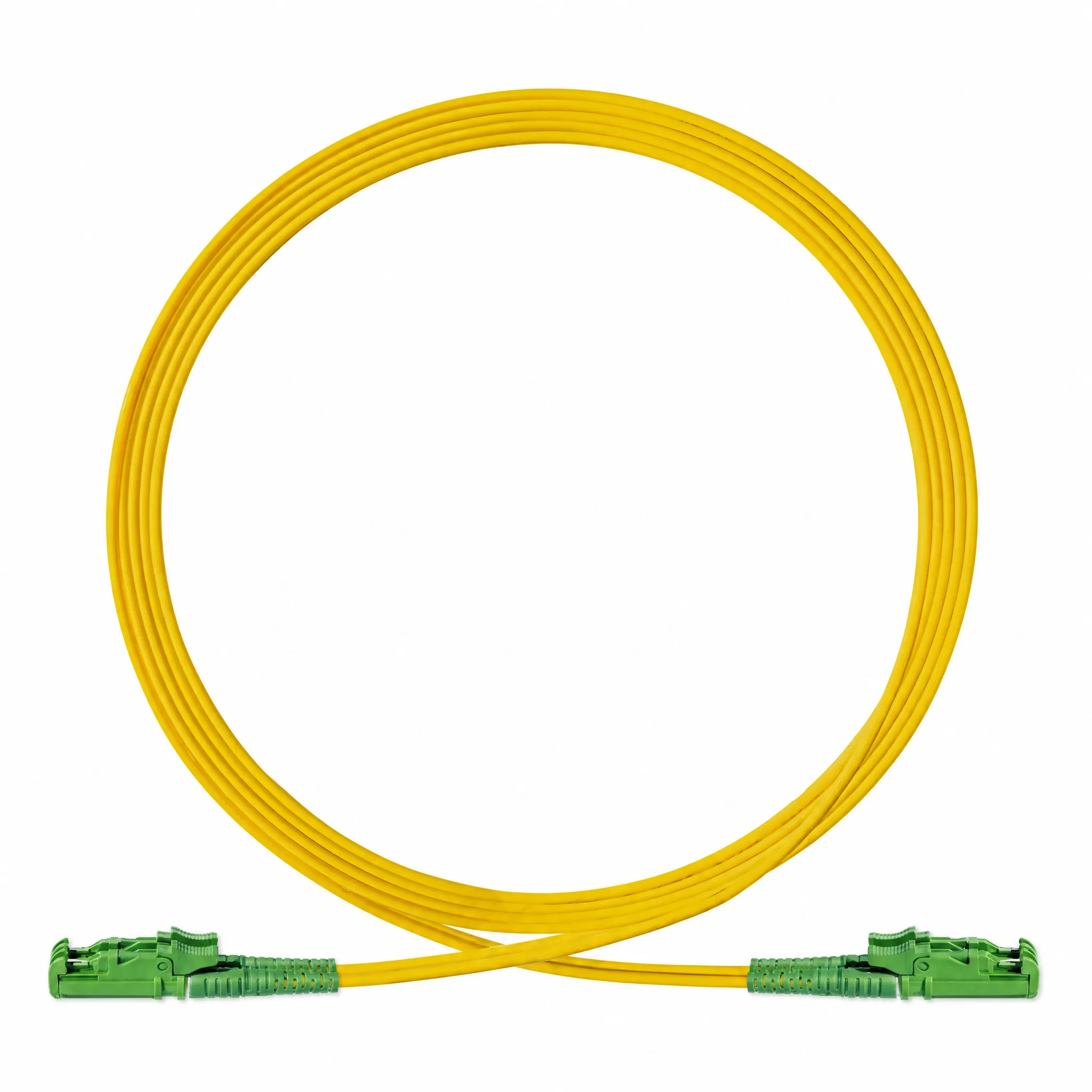

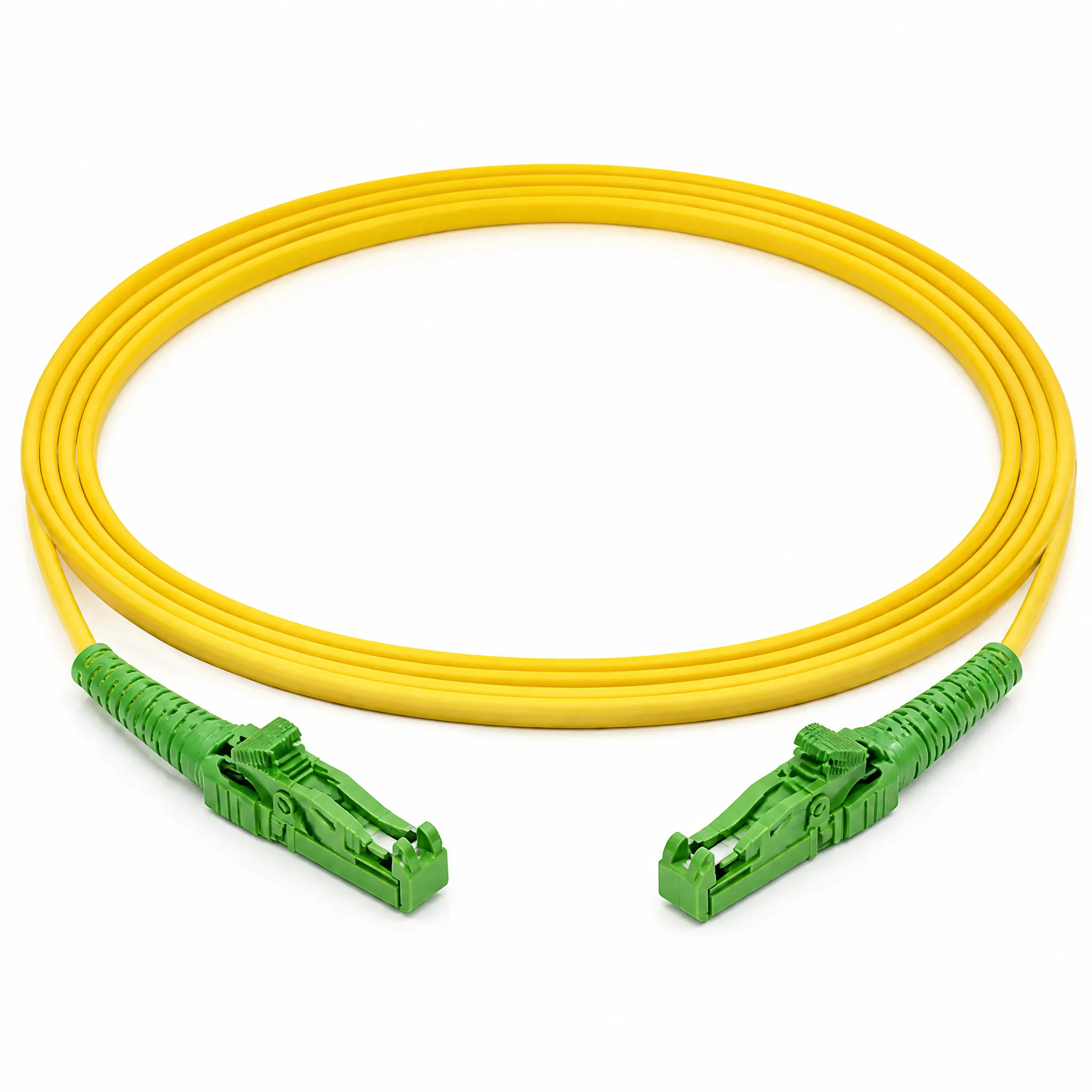

E2000 Fiber Optic Patch Cord — UPC & APC with Spring-Loaded Shutter
E2000 fiber optic patch cord with integrated spring-loaded dust shutter for eye safety and contamination protection. Available in UPC and APC polish for telecom and high-security applications.
| Specification | Detail |
|---|---|
| CONNECTOR TYPE | E2000/UPC or E2000/APC |
| FIBER MODE | Single Mode (9/125µm) |
| FIBER COUNT | 1 Fiber (Simplex) |
| INSERTION LOSS | ≤0.2dB |
| DURABILITY | ≥500 mating cycles |
| OPERATING TEMPERATURE | -20°C to +70°C |
| CONNECTOR TYPE | E2000/UPC or E2000/APC |
| FIBER MODE | Single Mode (9/125µm) |
| FIBER COUNT | 1 Fiber (Simplex) |
| CABLE DIAMETER | 2.0mm / 3.0mm |
| JACKET MATERIAL | PVC / LSZH |
| JACKET COLOR | Yellow |
| WAVELENGTH | 1310nm / 1550nm |
| INSERTION LOSS | ≤0.2dB |
| RETURN LOSS (UPC) | ≥55dB |
| RETURN LOSS (APC) | ≥65dB |
| DURABILITY | ≥500 mating cycles |
| OPERATING TEMPERATURE | -20°C to +70°C |
| DUST PROTECTION | Integrated spring-loaded shutter |
| STANDARDS | IEC 61754-15 · Telcordia GR-326 |
Engineered For Performance
Integrated Dust Shutter
Spring-loaded shutter automatically covers the ferrule end-face when disconnected, preventing contamination and providing Class 1 laser safety protection.
High-Performance Polish Options
Available in both UPC (≥55dB) and APC (≥65dB) polish grades, supporting diverse telecom and broadcast application requirements.
European Telecom Standard
E2000 (also known as LSH) is the preferred connector in European telecom networks, specified by major carriers for its safety and reliability features.
Typical Applications
European Telecom Networks
Central office and outside plant connections in European carrier networks where E2000 is the mandated connector standard.
High-Security Installations
Government and financial network infrastructure requiring the additional laser safety and contamination protection of the integrated shutter.
