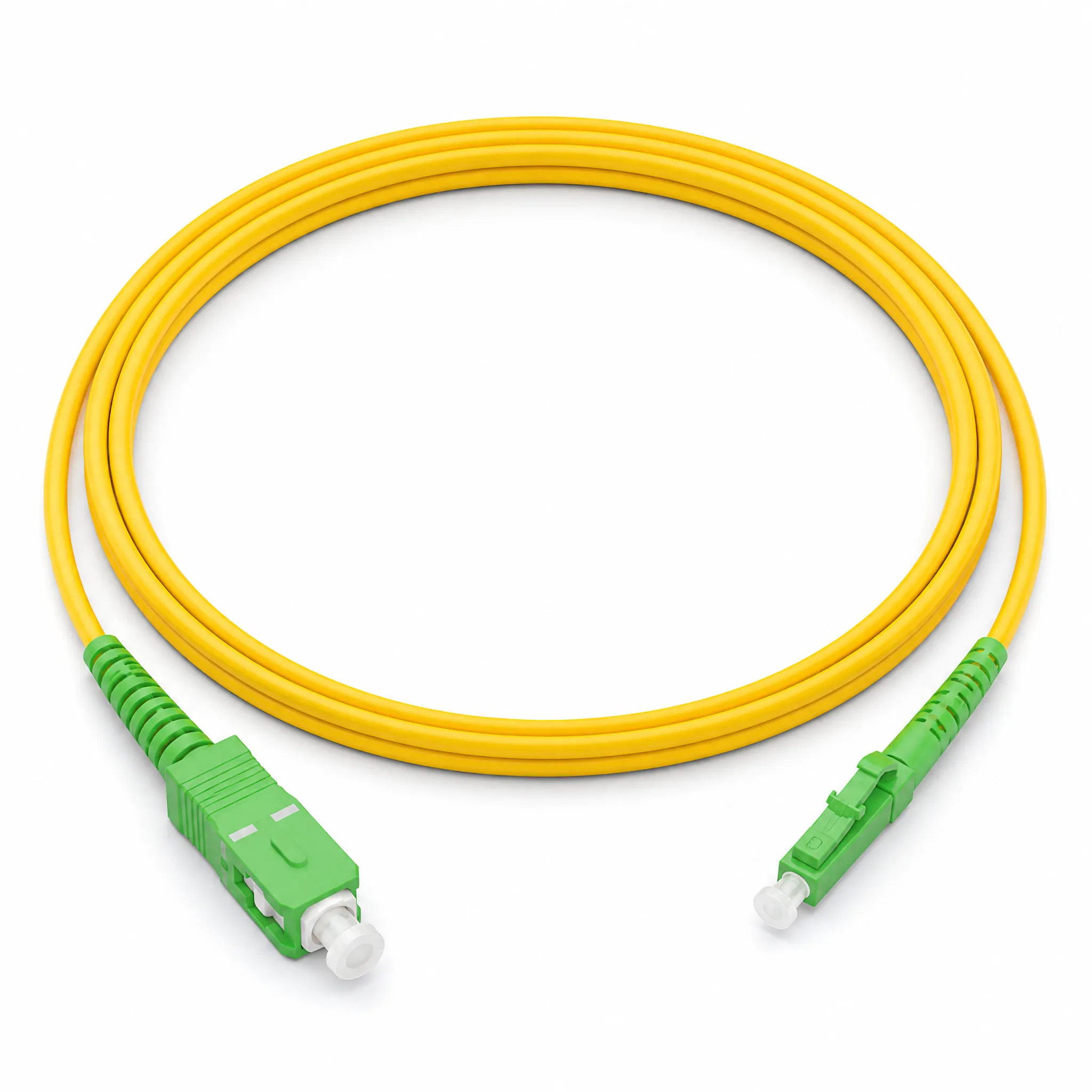

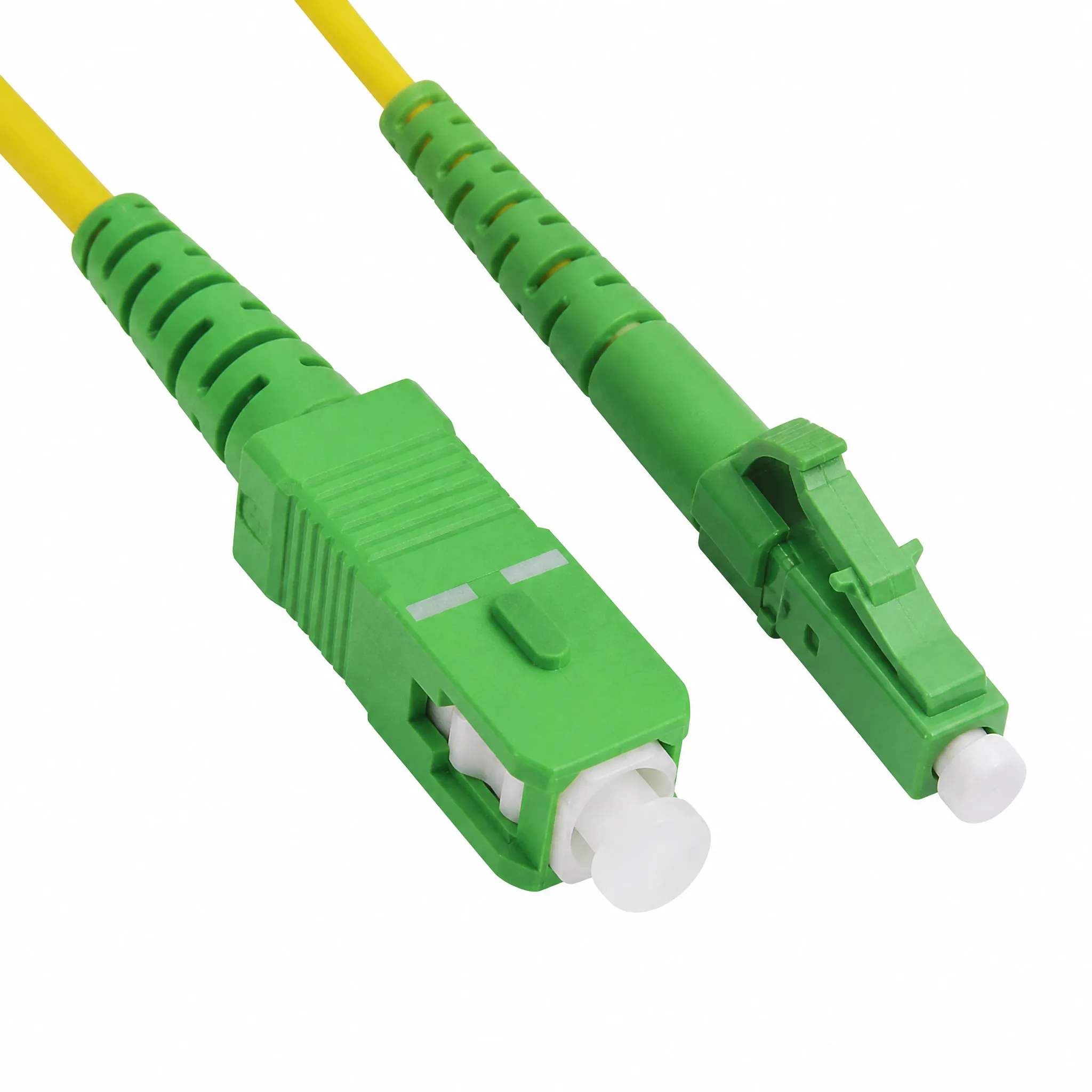

SC/APC to LC/APC Single Mode Hybrid Fiber Optic Patch Cord
Hybrid APC patch cord bridging SC and LC interfaces in single mode networks. Ideal for FTTH OLT-to-panel connections with ≥60dB return loss on both ends, ensuring PON signal integrity.
| Specification | Detail |
|---|---|
| CONNECTOR TYPE | SC/APC – LC/APC |
| FIBER MODE | Single Mode (9/125µm) |
| FIBER COUNT | 1 Fiber (Simplex) |
| INSERTION LOSS | ≤0.3dB |
| RETURN LOSS | ≥60dB (APC) |
| DURABILITY | ≥1000 mating cycles |
| CONNECTOR TYPE | SC/APC – LC/APC |
| FIBER MODE | Single Mode (9/125µm) |
| POLISH TYPE | APC (8° Angle) both ends |
| FIBER COUNT | 1 Fiber (Simplex) |
| CABLE DIAMETER | 2.0mm / 3.0mm |
| JACKET MATERIAL | PVC / LSZH |
| JACKET COLOR | Yellow |
| CONNECTOR COLOR | Green (both ends) |
| WAVELENGTH | 1310nm / 1550nm |
| INSERTION LOSS | ≤0.3dB |
| RETURN LOSS | ≥60dB (APC) |
| DURABILITY | ≥1000 mating cycles |
| OPERATING TEMPERATURE | -20°C to +70°C |
| STANDARDS | IEC 61754-4 · IEC 61754-20 · Telcordia GR-326 |
Engineered For Performance
Dual APC Interface
Angled physical contact polish on both ends maintains consistently high return loss (≥60dB) across the entire link, critical for PON signal quality.
OLT-to-Panel Bridging
Designed specifically for connecting OLT ports to high-density patch panels, streamlining FTTH central office cabling without extra adapters.
Form Factor Transition
Enables migration from SC-based splitter outputs to high-density LC-based ODF panels, saving panel space and simplifying cable management.
Typical Applications
FTTH Central Office
Connecting GPON/XGS-PON OLT ports to optical distribution frames for subscriber management in central office environments.
PON Splitter Patching
Bridging splitter outputs to high-density patch panels for flexible subscriber provisioning in fiber distribution hubs.
