Fiber Optic Cable|Micro Distribution Fiber Optic Cable 96Fibers 8x12F Subunit MM 10Gig OM3 50/125um Riser Rated Aqua
Micro distribution fiber optic cable is a type of fiber optic cable that is used for indoor cabling where space is primary concern. UnitekFiber's micro distribution fiber optical cable are offered with fiber counts from 48 to 288fibers and comes with flame retardance jackets. Plemum rated, Riser rated and LSZH jackets are available upon request. Fiber counts over 12 are grouped in subunits of 12 fibers. Micro distribution optical fiber cables are perfect for use in data centers and premise networks. Furthermore, the micro distribution fiber optic cable is available in OS2/OM1/OM2/OM3 and OM4 fiber types with YOFC and Corning fiber brands. The combination of high fiber capacity, compact construction, flexible jacket options, and multiple fiber types makes UnitekFiber's micro distribution fiber optical cable a great solution for high density indoor fiber cabling.
Key Feature of Micro Distribution Fiber Optic Cable
Compact Micro Distribution Design: The micro distribution fiber optic cable comes with high fiber count design which provides a cleaner, more organized cabling solution for small space indoor network cabling.

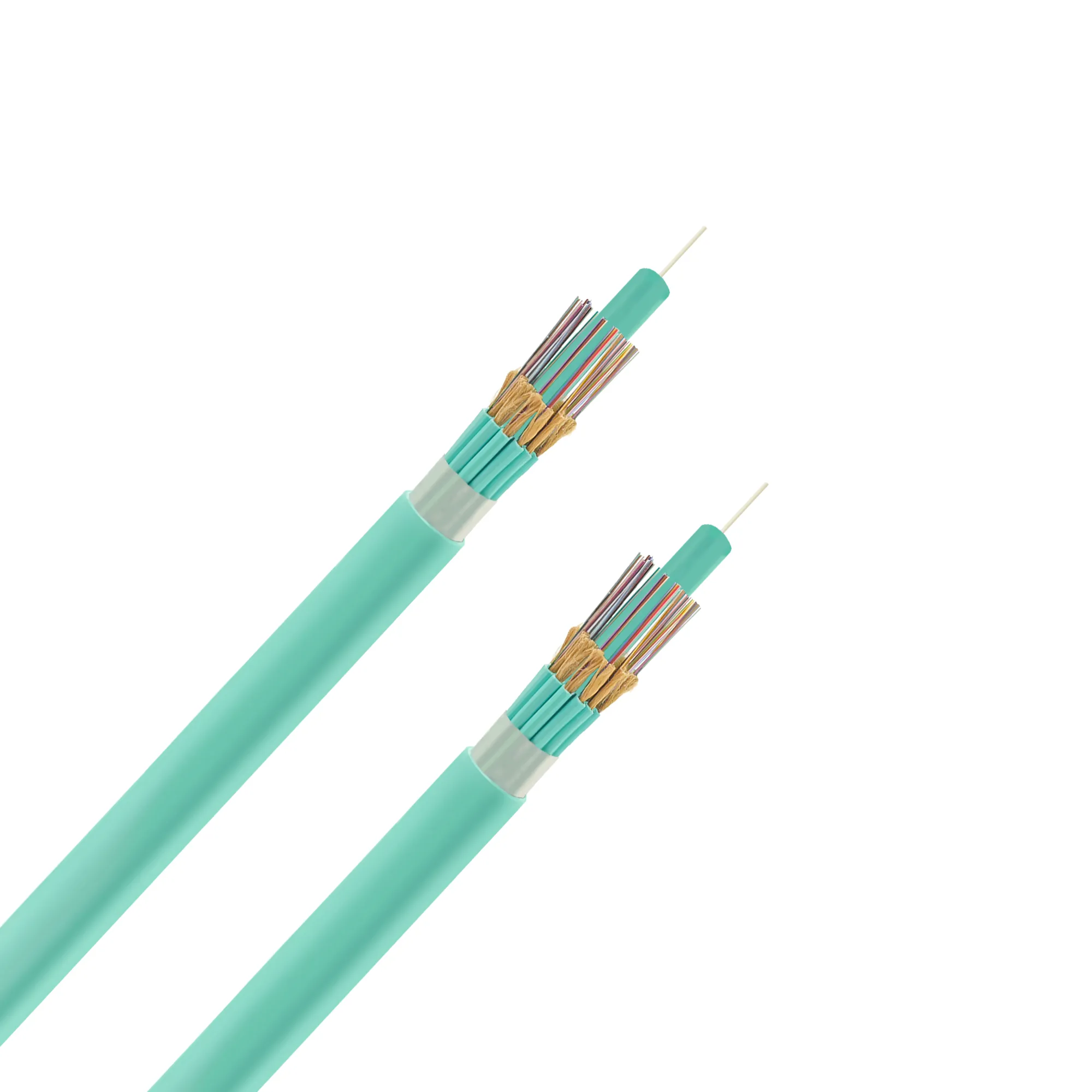

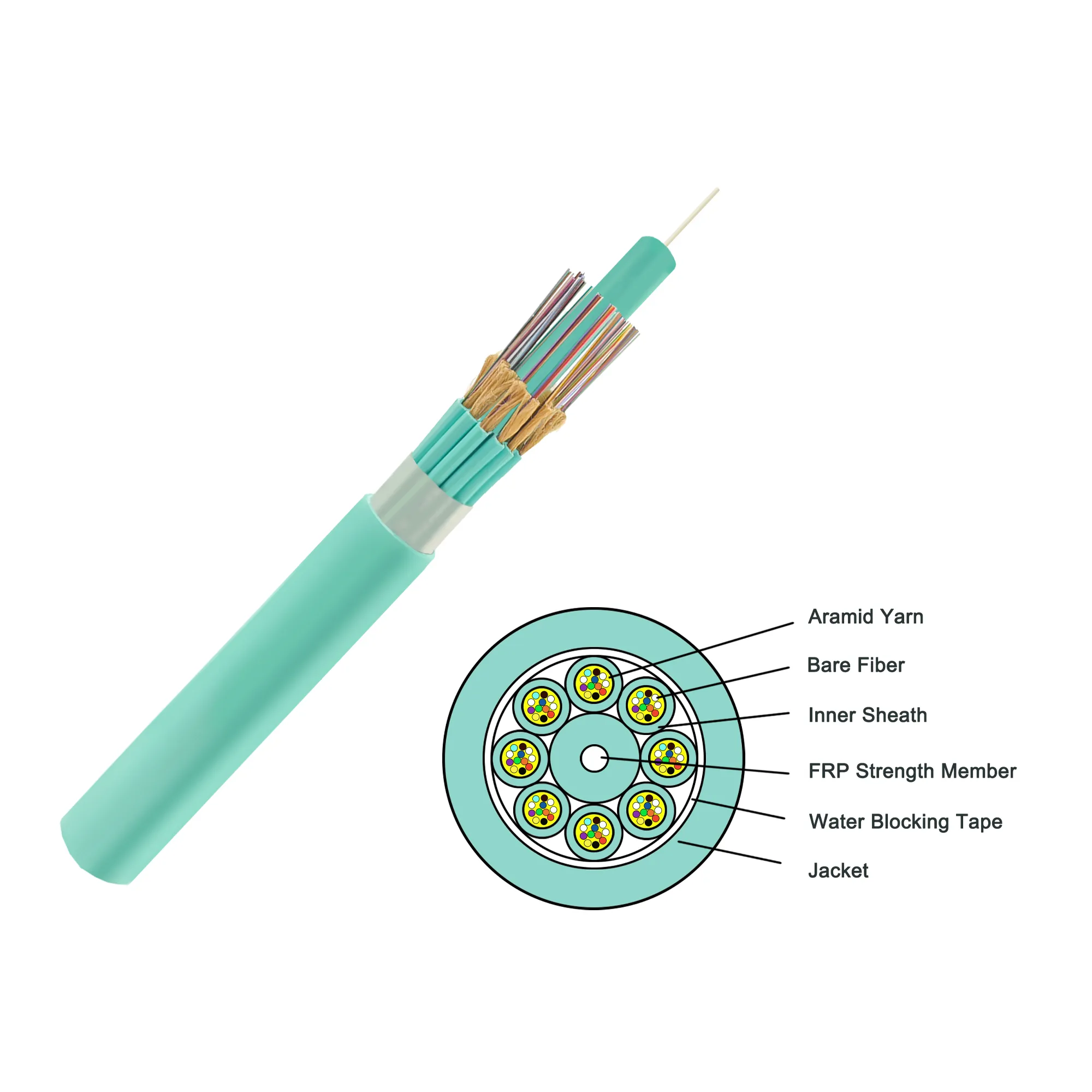

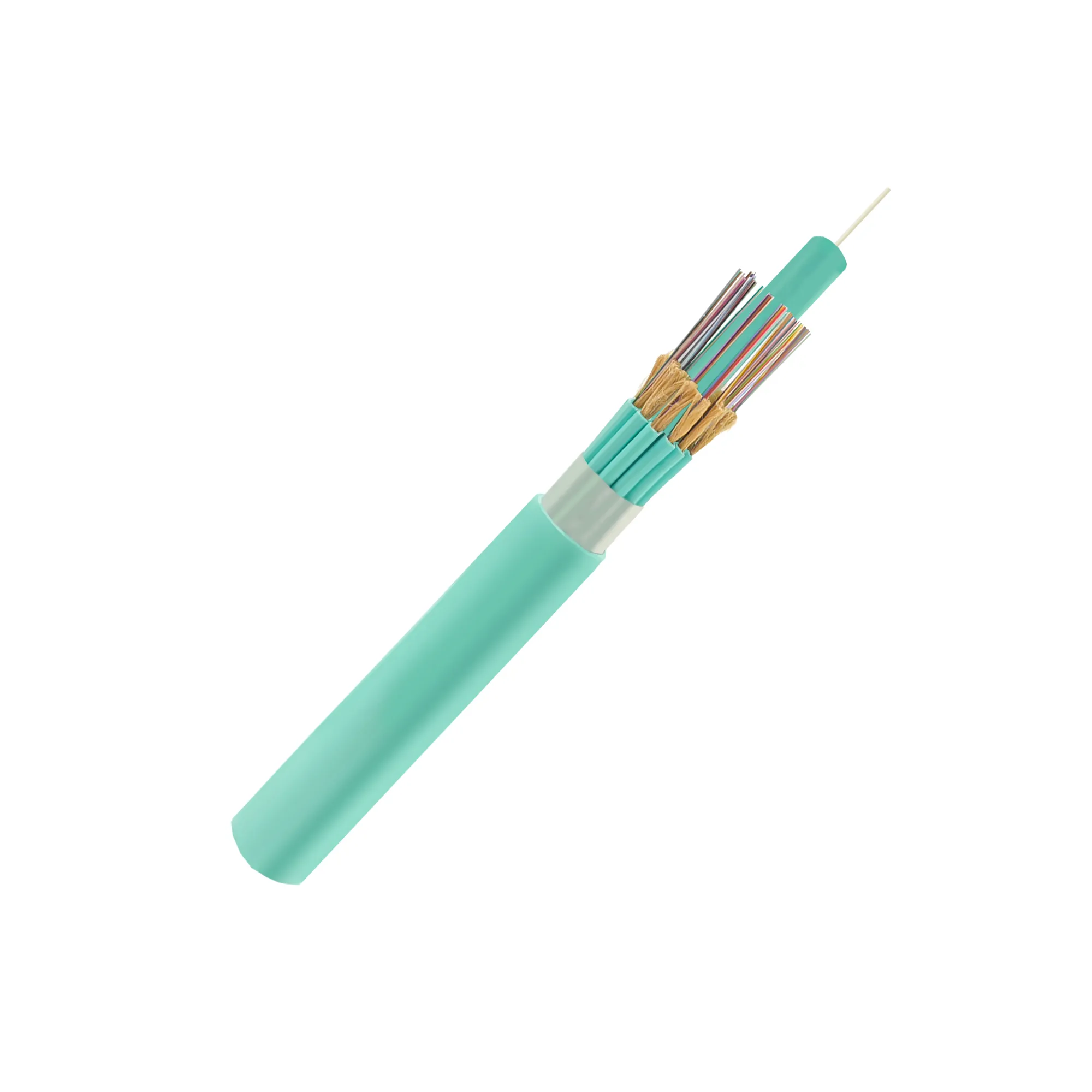

96Fibers Count with 8x12Fibers Subunits: The micro distribution optical fiber cable contains 96 optical fibers arranged into 8x12fibers subunit tubes, providing an organized structure for high density fiber cabling.
Multimode OM3 Fiber: Built with OM3 optical fiber, this micro distribution fiber optical cable is designed to support high speed network, including 10Gb and 40Gb Ethernet.
Riser Rated Jacket for Indoor Vertical Cabling: The riser rated outer jacket of micro distribution fiber optic cable is designed for suitable indoor vertical cable runs between floors and through riser spaces.
Easy Routing & Termination Micro Indoor Fiber Optic Cable
The micro distribution fiber optic cable features clear 250um color-coded fibers with individual color identification, allowing installers to quickly distinguish and manage each fiber during installation, splicing, termination, and maintenance. The color-coded design helps reduce fiber identification errors and improves overall fiber management efficiency. Meanwhile, the 12fibers subunit tube of micro distribution fiber optical cable enables easier fiber breakout and MTP/MPO connector termination, helping simplify installation, routing, and cable management in high density fiber optic networks.
Multiple Jacket Options for Indoor Micro Fiber Optic Cable
UnitekFiber provides a wide selection of jacket for micro indoor fiber optic cables, including LSZH, PVC, PVC-OFNR, and highest fire resistance PVC-OFNP. For installations where reduced smoke and low toxicity emissions are important, an LSZH jacket is an appropriate option. PVC-OFNR jacket is suitable for vertical or riser applications, while PVC-OFNP jacket is intended for plenum spaces where higher fire performance requirements apply. Beyond offering different jacket materials, UnitekFiber can also customize the jacket color to meet specific project requirements.
Common Applications for Micro Distribution Fiber Optic Cables
Micro distribution fiber cables serve space limited indoor cabling projects with high fiber counts. They are commonly used for data center high density distribution and backbone cabling, enterprise structured wiring, server rooms and telecommunications rooms. With subunit structures, these micro distribution fiber optic cable supports MTP/MPO termination for indoor campus networks and dense cable pathway deployments.
