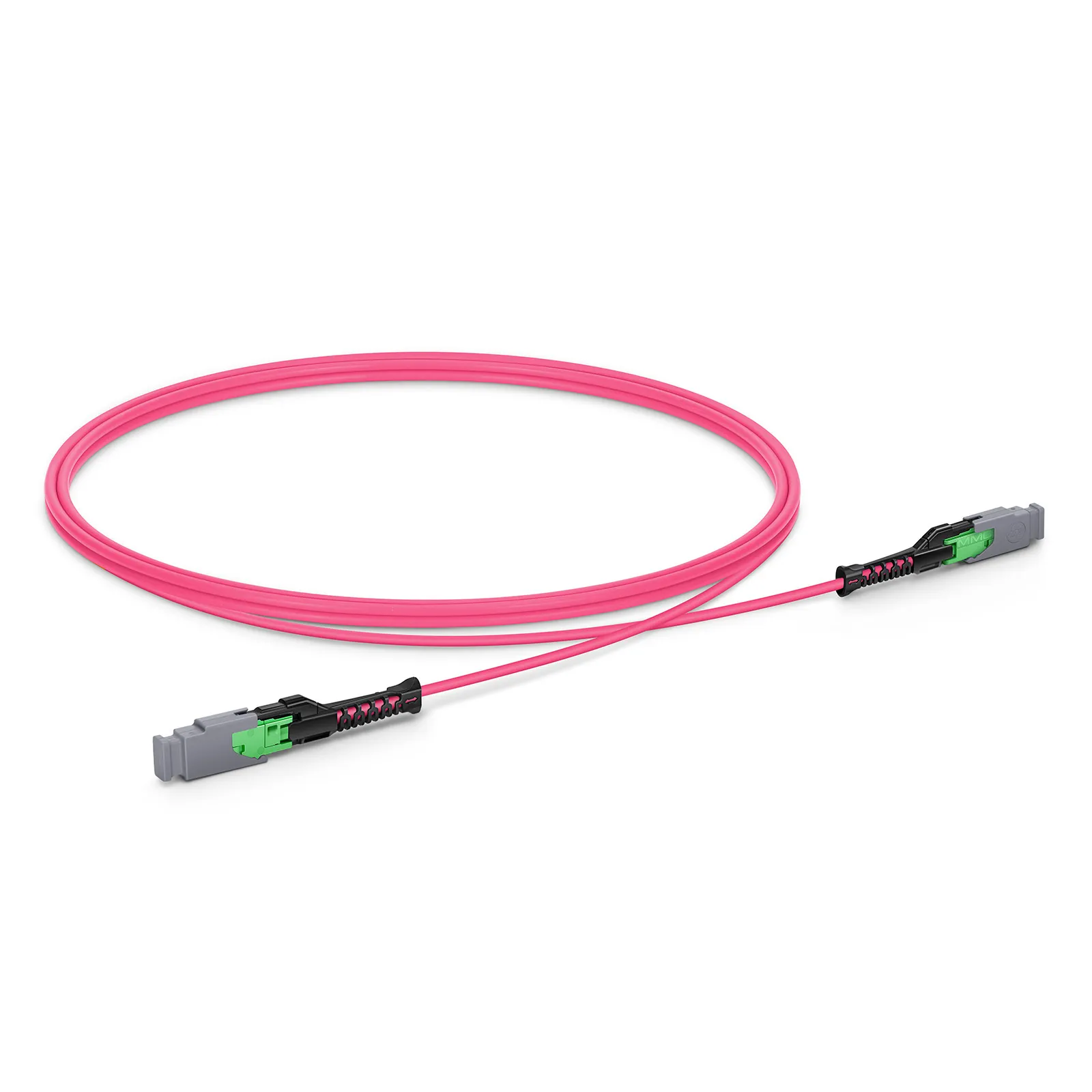

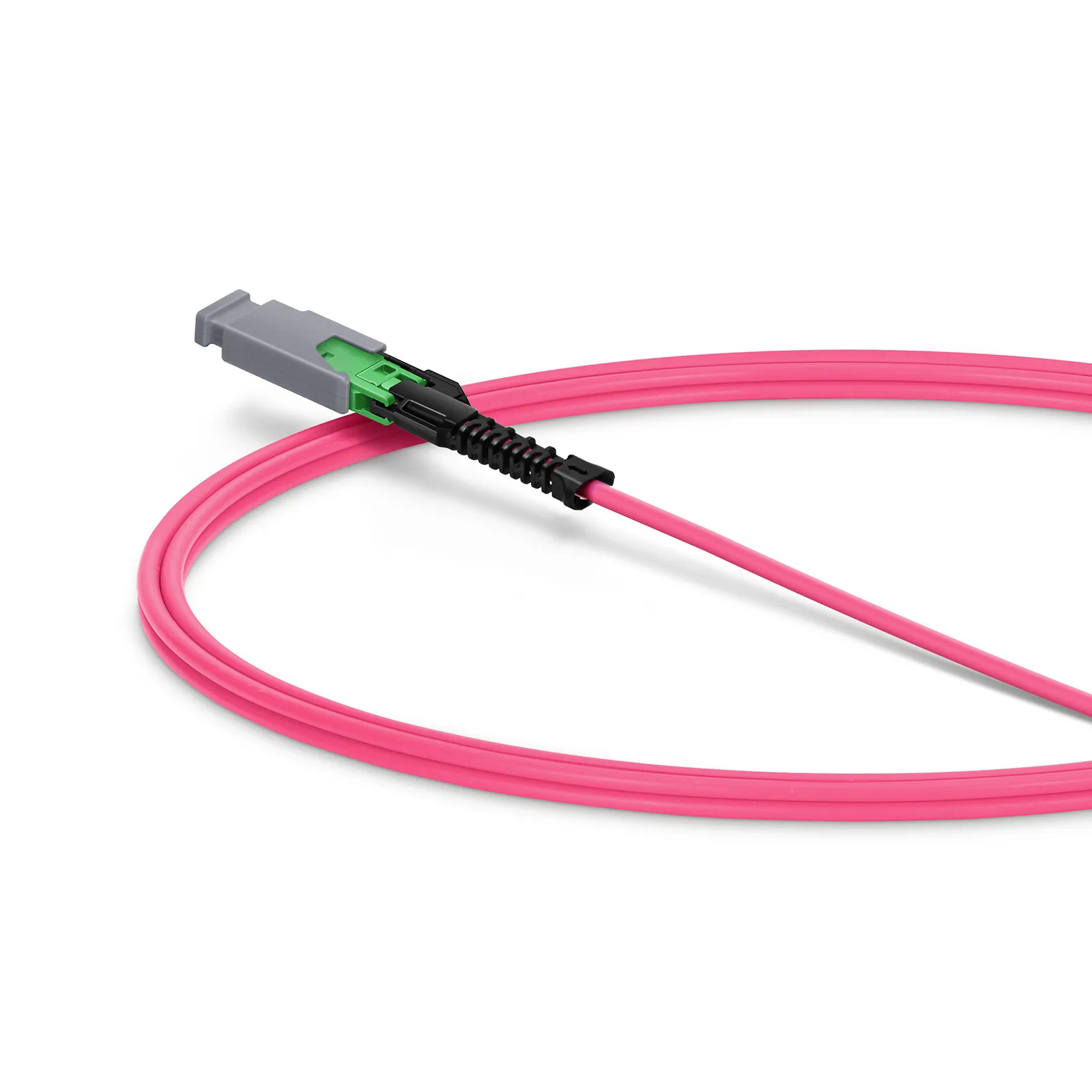

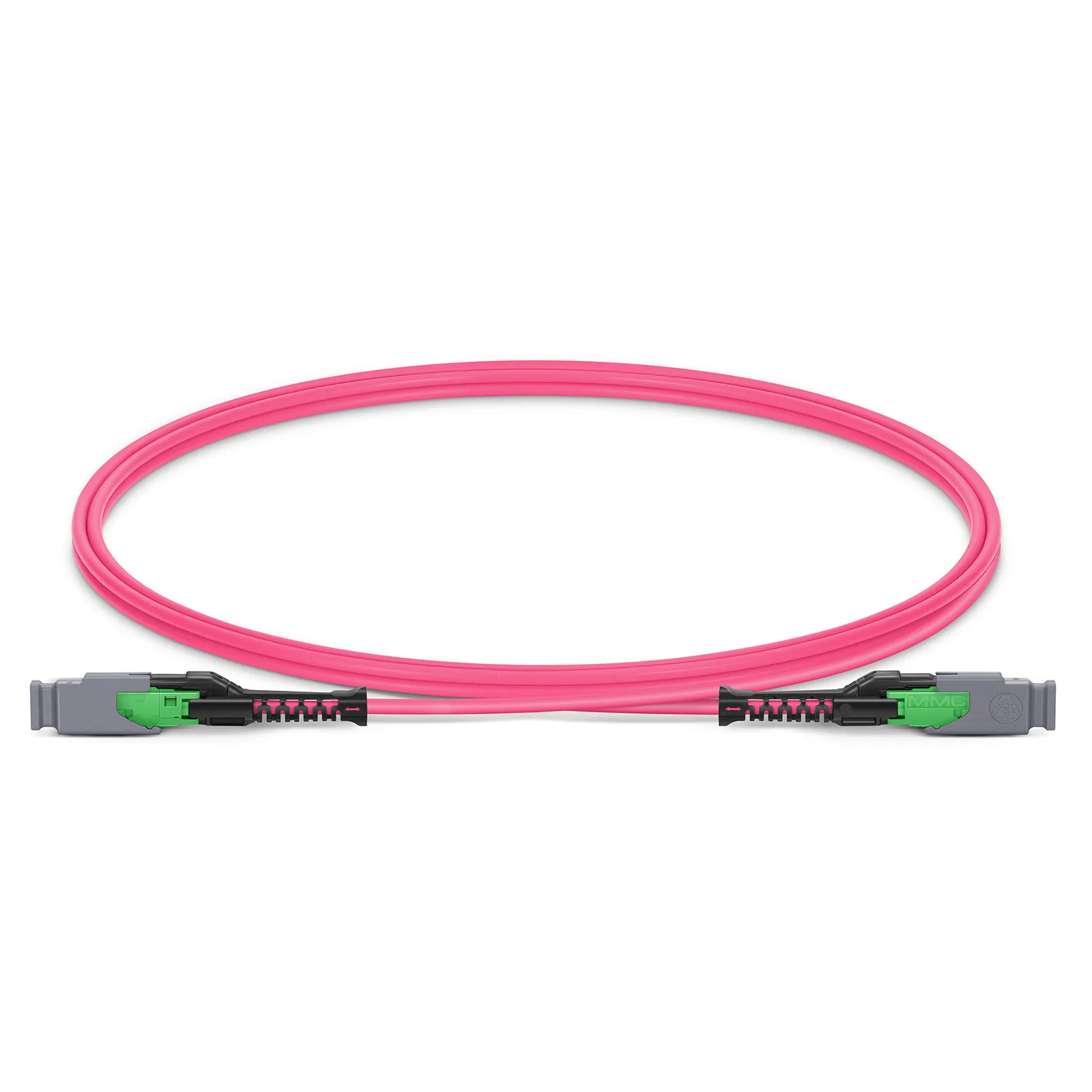

1m (3ft) MMC Jumper, MMC-16 APC (Female) to MMC-16 APC (Female), 16 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Jumper Polarity, Magenta
Product Highlights
VSFF MMC Connector Delivers Over 3x the Port Density of MPO
Top & Bottom Rails Enable Correct Orientation to Simplify Installation and Maintenance
Utilizes Proven MT/MT-16 Mechanical and Fiber Alignment Structures
DirectConec™ Push-Pull Boot for Effortless Connector Insertion and Extraction
TMT Elite™ Enable 0.35dB Low IL and APC for Superior Return Loss
Tested to Telcordia GR-1435
Support Data Center Structured Cabling and High-Bandwidth Applications

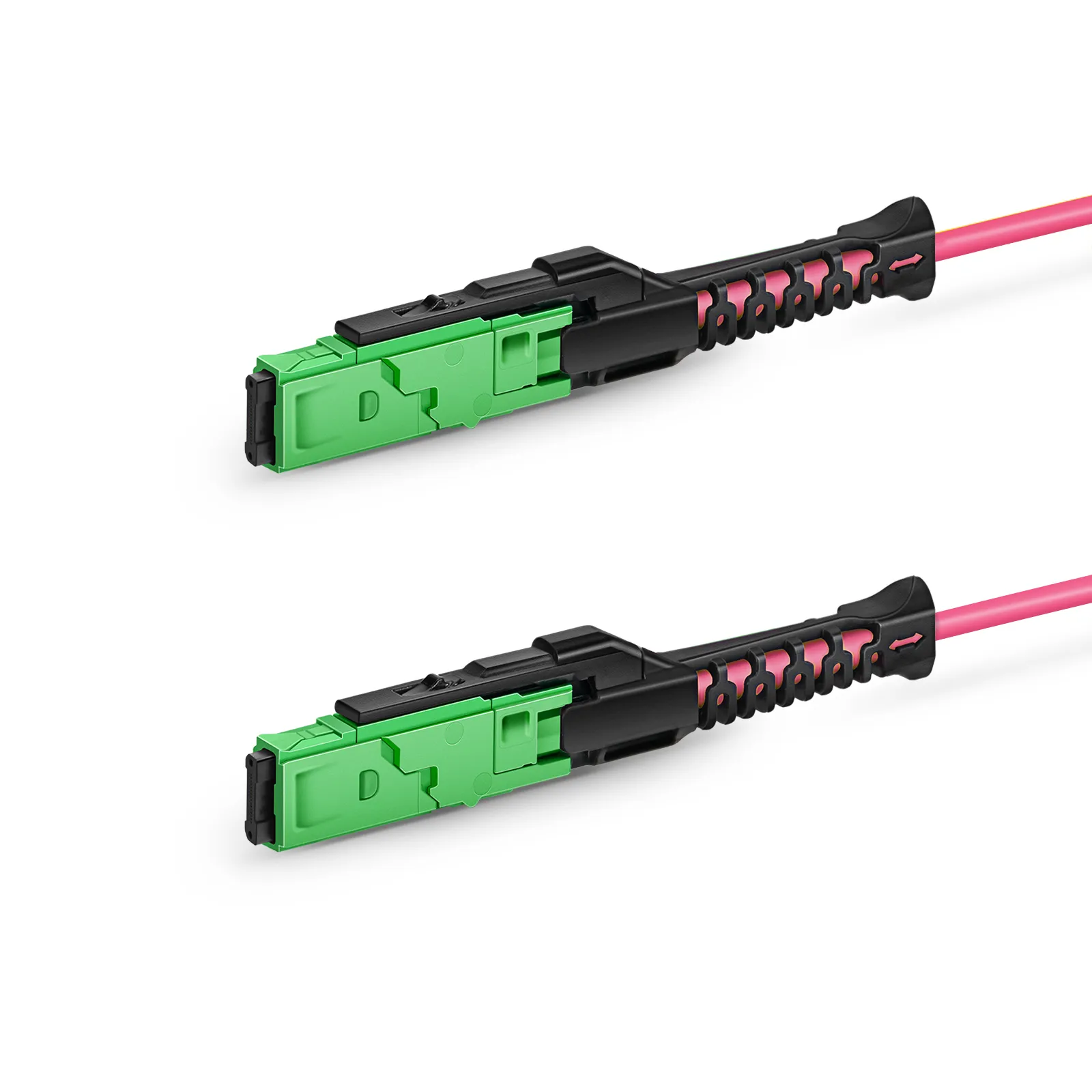

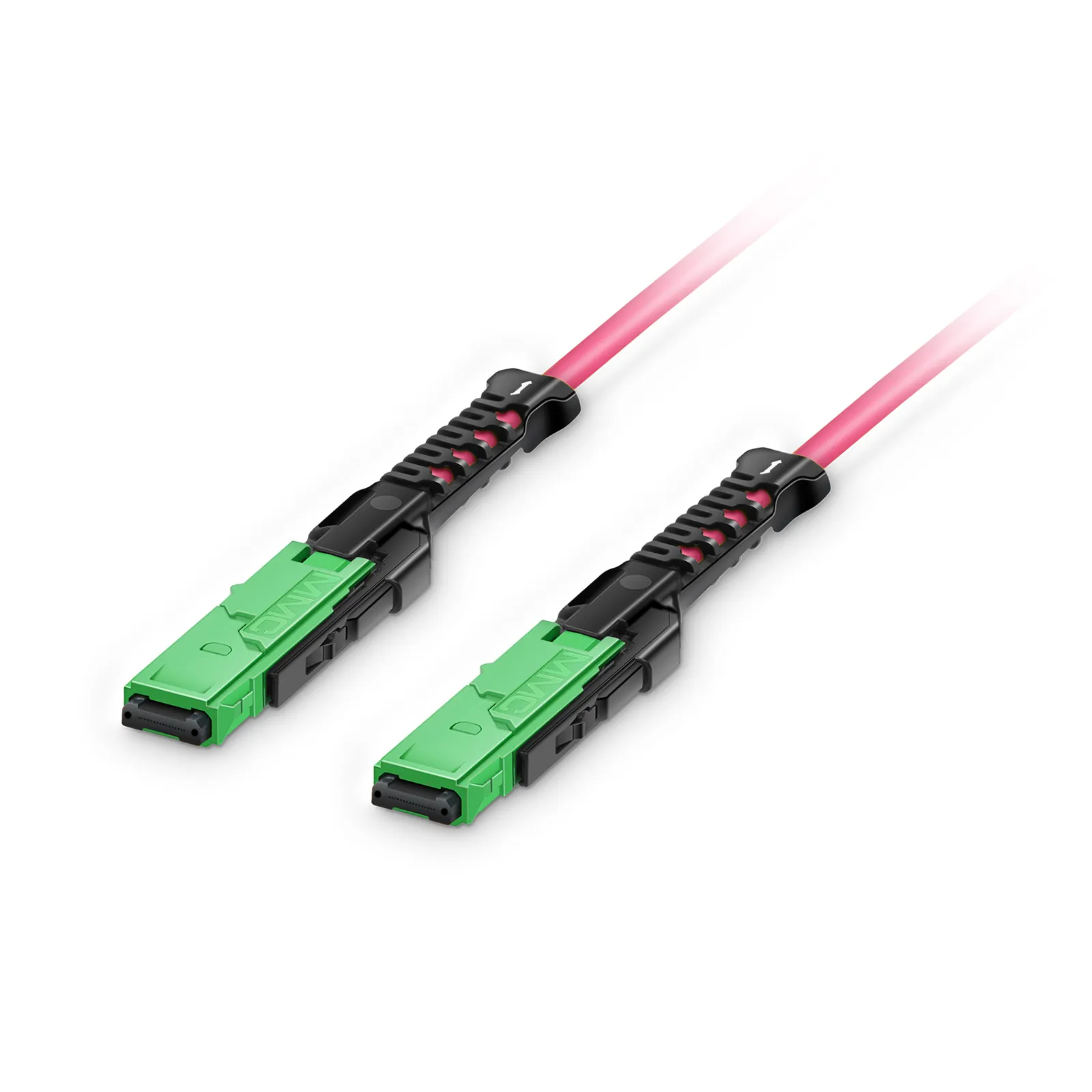

MMC-16 to MMC-16 Jumper, F to F, APC, 16F, OM4, OFNP, 0.35dB, Jumper Polarity

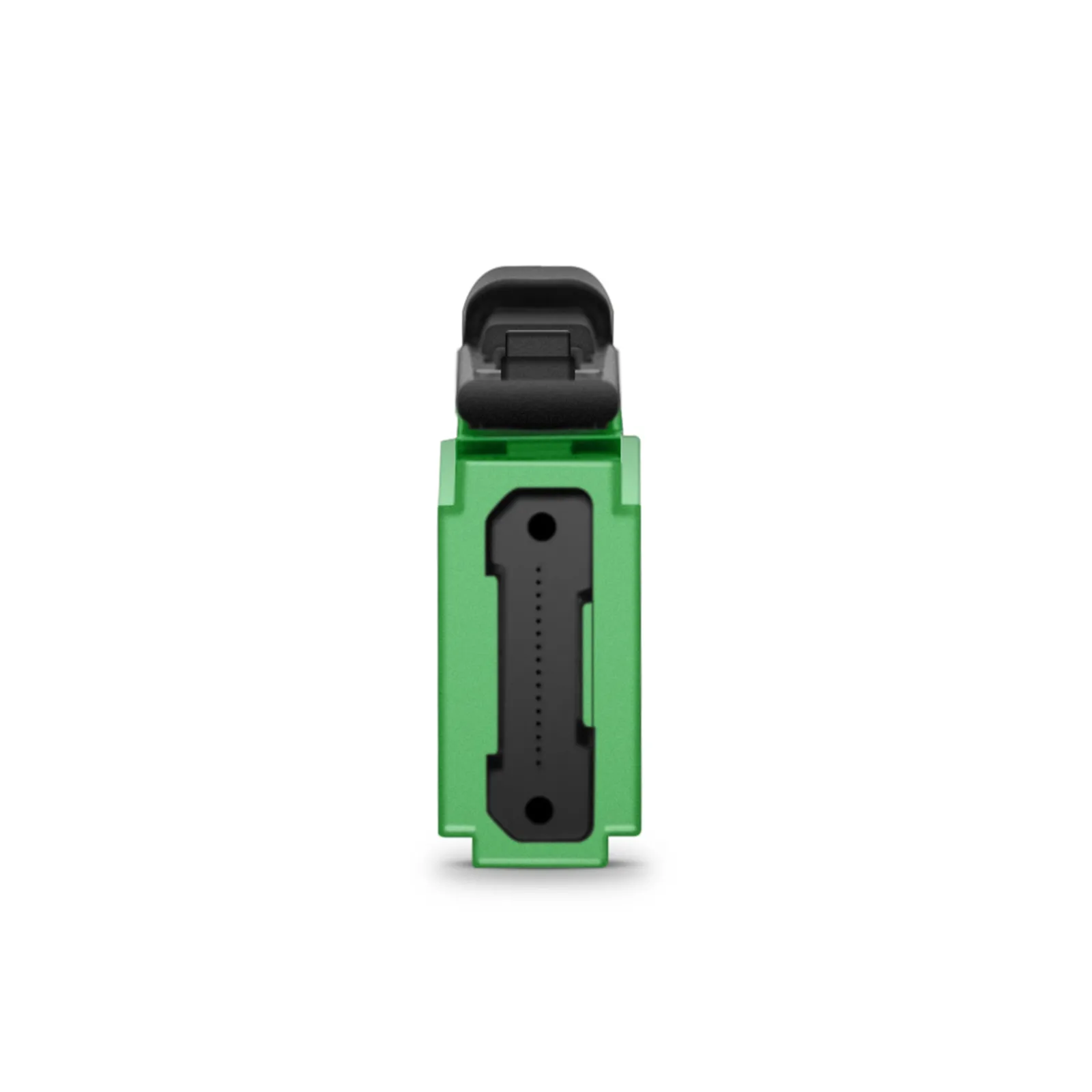

The MMC fiber cable is equipped with an MMC connector, a Very Small Form Factor (VSFF) multi-fiber optical connector designed to terminate single-mode and multimode fiber cables up to 2.5mm in diameter. It employs novel TMT ferrule technology harmonized with the MT/MT-16 alignment structure. Individual connector access in the most extremely dense connector environments is easily accomplished using revolutionary DirectConec™ push-pull boot technology.
MMC connectivity enables solutions that minimize the space required across multiple applications, including structured cabling, high fiber count data center interconnects, and high-bandwidth applications.
| Connector A | US Conec MMC Female (Non-Pinned) | Connector B | US Conec MMC Female (Non-Pinned) |
|---|---|---|---|
| Polish Type | APC to APC | Glass Fiber | Bend Insensitive Fiber |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Fiber Count | 16 Fibers | Polarity | Jumper Polarity |
| Cable Outside Diameter (OD) | 2.5mm | Cable Jacket | Plenum (OFNP) |
| Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Tensile Strength (Long Term) | 30N | Tensile Strength (Short Term) | 100N |
| Insertion Loss | ≤0.35dB | Return Loss | ≥40dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Operating Temperature | -10 to 60°C (14 to 140°F) | Storage Temperature | -10 to 70°C (14 to 158°F) |
Connectivity Solutions

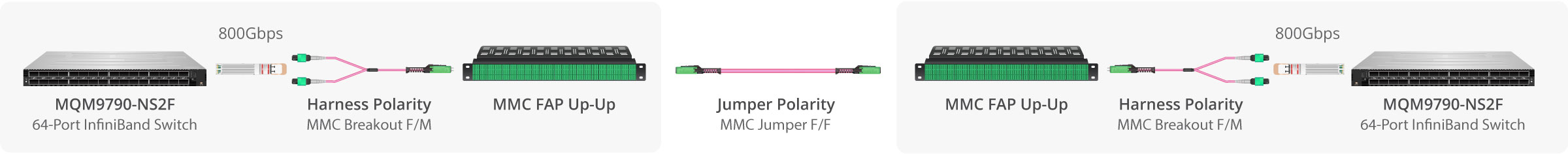

800G Parallel Interconnect

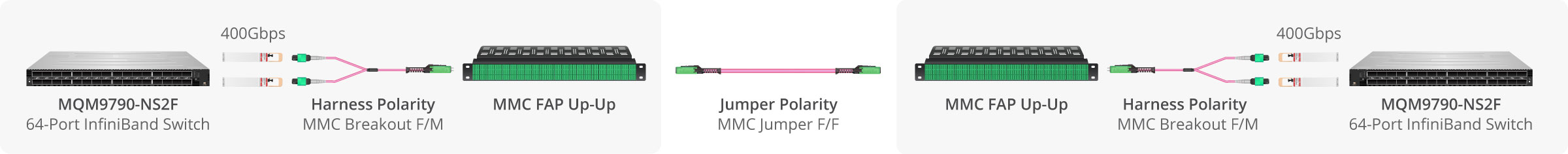

400G Parallel Interconnect
Features

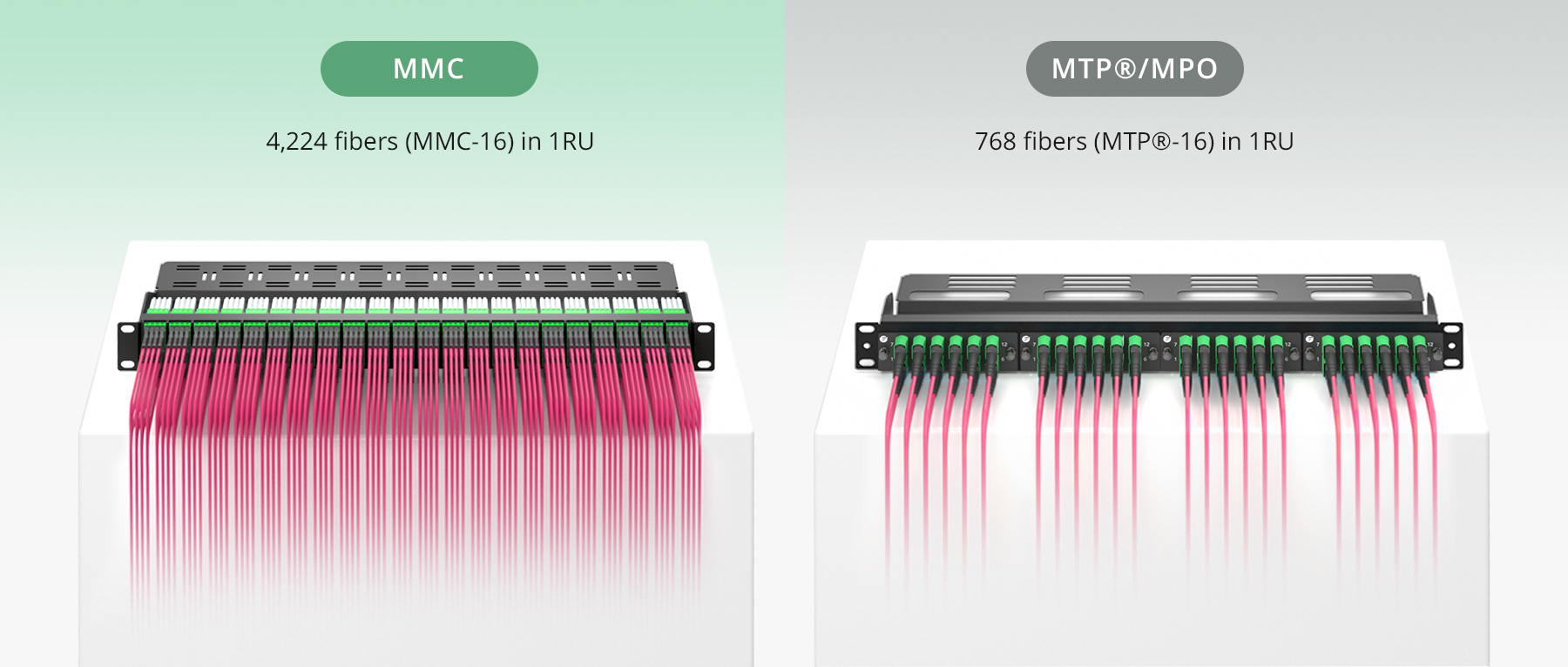

Over 5x Cabling Density in 1RU
The VSFF MMC connectors offer significant space savings, which help provide over five times the cabling port density in 1RU.
Superior Workmanship Guarantees Stable Transmission
Bend insensitive fiber paired with high-performance US Conec MMC connectors delivers reliable connectivity for dense data center and carrier-grade applications.

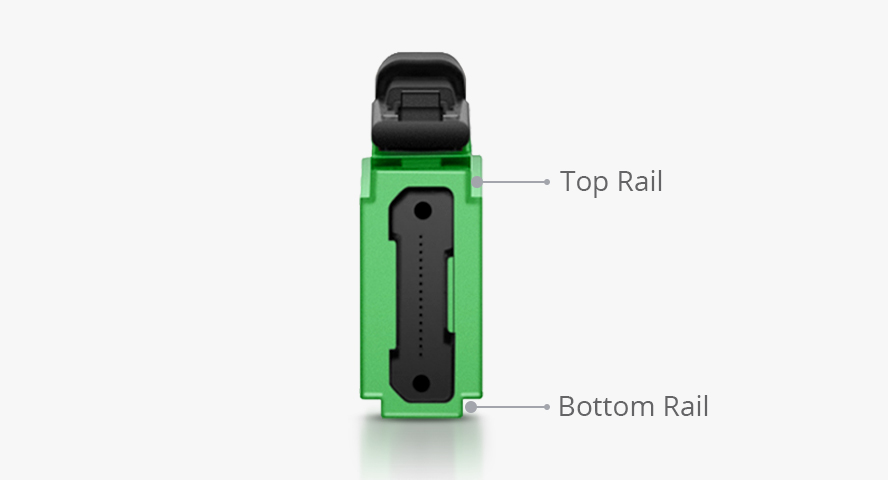

Top and bottom rail features ensure the connector is installed in the correct orientation.

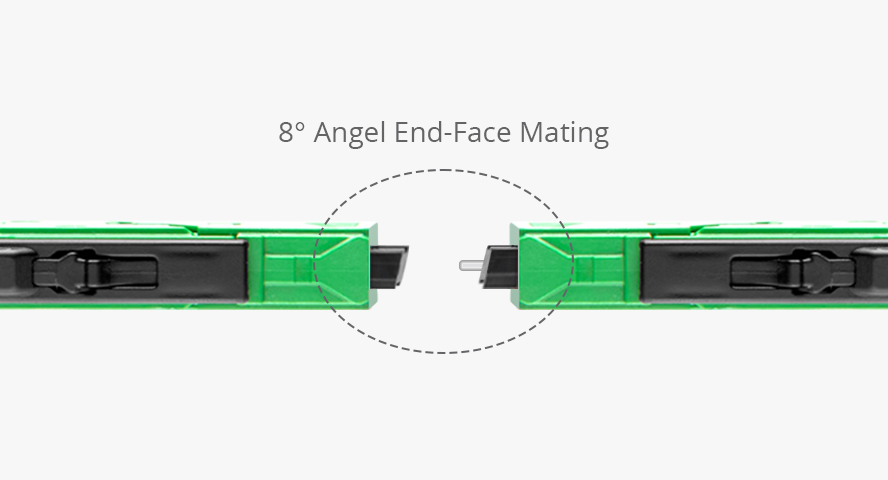

US Conec MMC connector features 0.35dB low insertion loss, and APC for superior return loss.

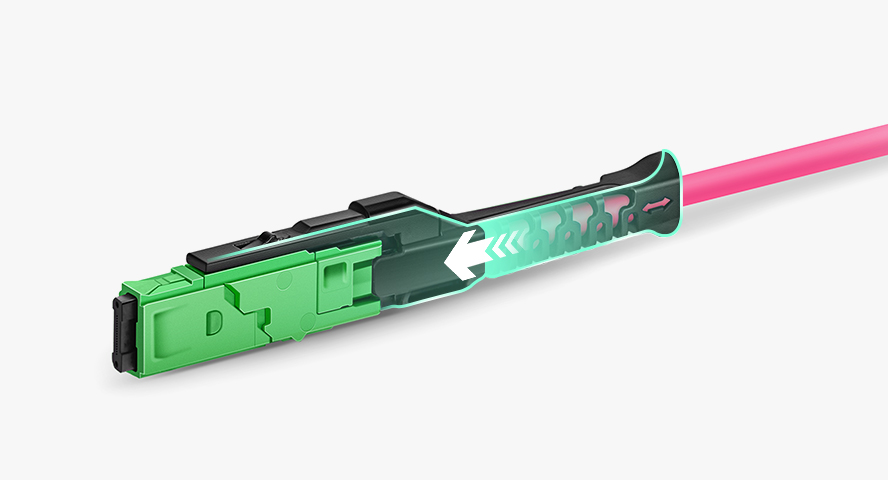

DirectConec™ push-pull boot allows quick insertion and extraction without tools in high-density spaces.

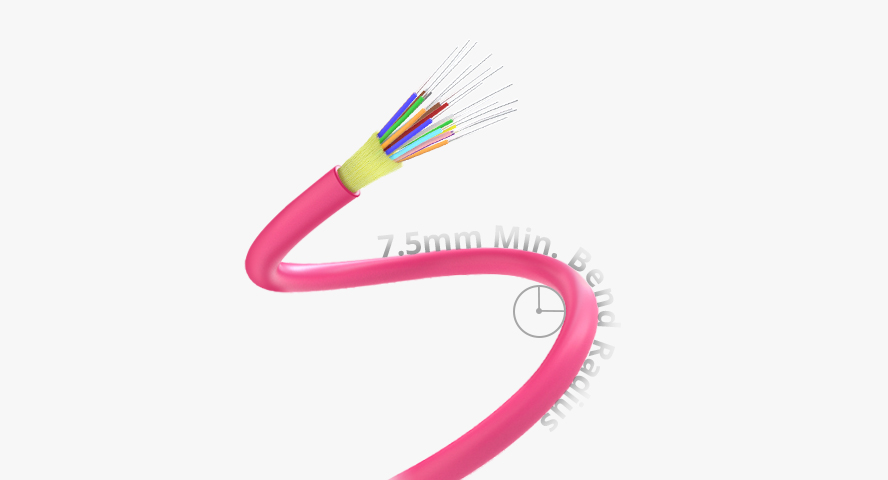

Bend insensitive fiber with 7.5mm min. bend radius allows tighter cable bends for slack storage and routing.

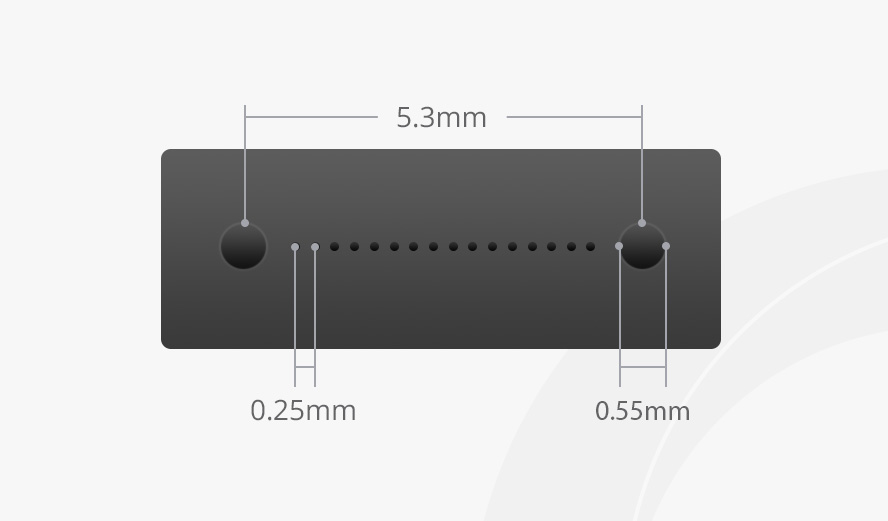

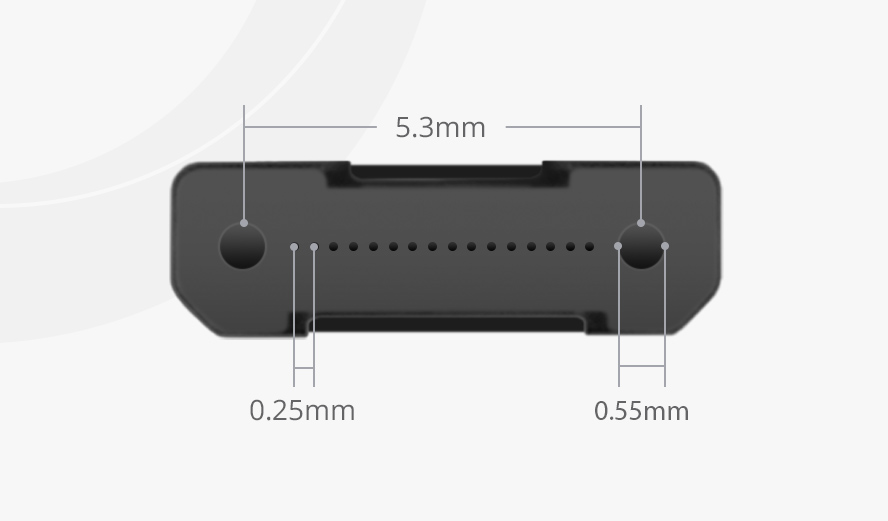

Proven TMT Ferrule Technology
The TMT ferrule format is compliant with IEC 61755 and 61754 precision alignment structures for MT and MT-16 ferrules, ensuring precision polishing and mechanical integrity for repeated insertions and extractions.
TMT-16 Ferrule
MT-16 Ferrule

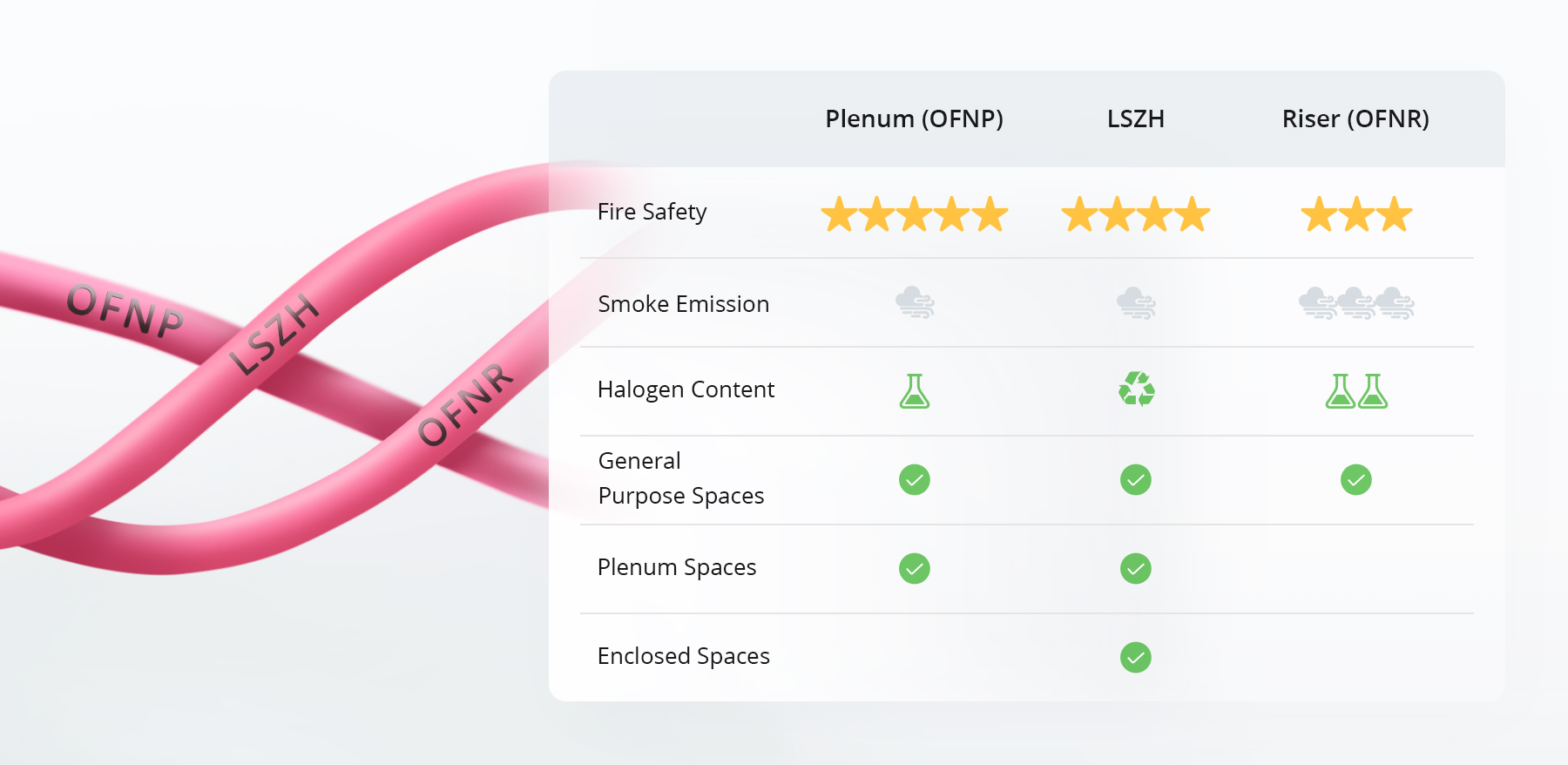

Plenum Jacket, The Highest Fire Safety-Rated
The OFNP (plenum) jacket is safe for plenum air spaces and compatible with both unrated and OFNR (riser) rated applications.

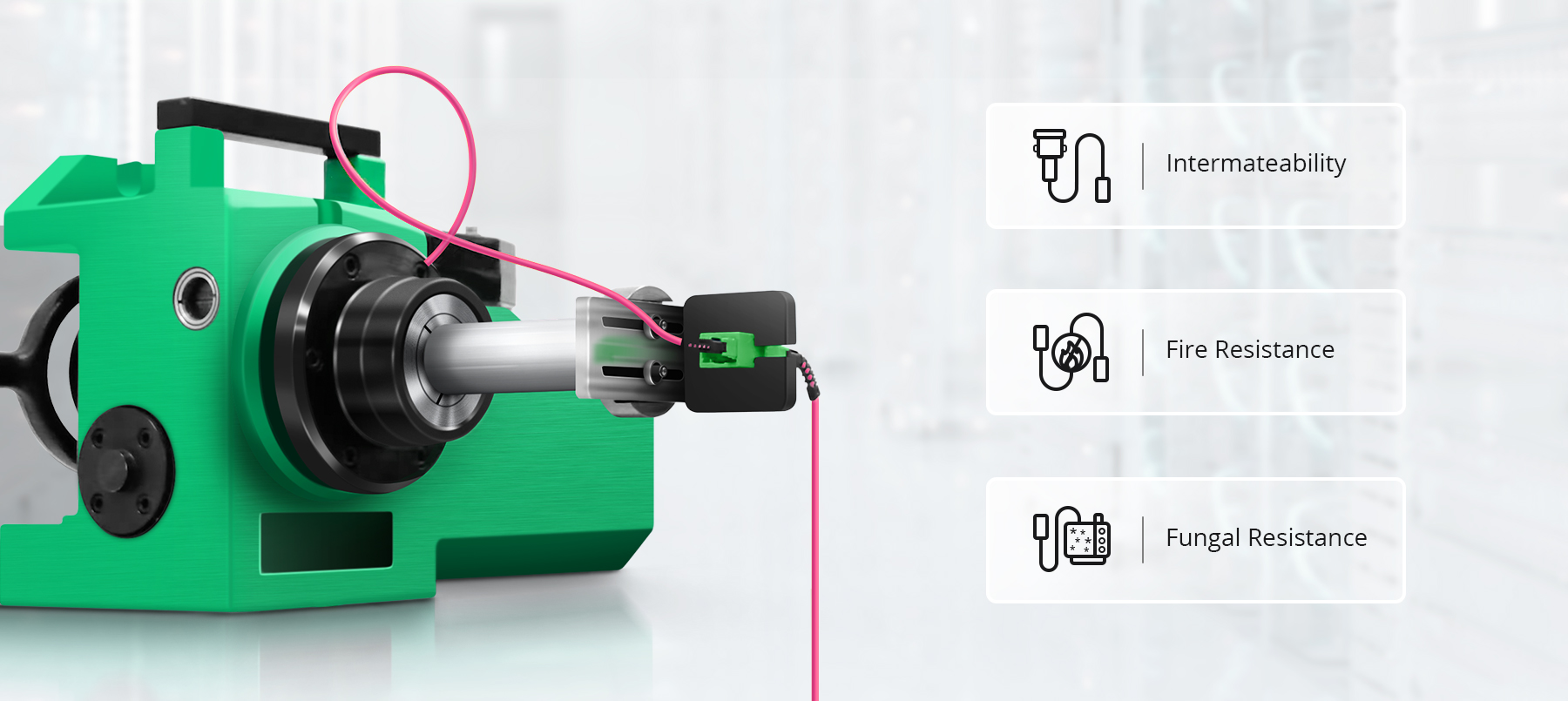

Tested to Telcordia GR-1435
The MMC cable meets the Telcordia GR-1435 standards and covers the performance, tests, and quality requirements, seamlessly integrating with industry-standard infrastructure by adhering to a strict quality assurance program.
Visual Cable Management with FSWireNet
Labels can be used with the FSWireNet Network Mapping System, efficiently and accurately pinpointing the location of integrated wiring cables.
 |  |  |  |  | |
|---|---|---|---|---|---|
| 16FMMCOM4 | 16FMMCSMF | 16FMMCMTPSMF | 16FMMCMTPOM4 | 24FMMCMTPOM4 | |
| Fiber Mode | OM4 50/125μm | OS2 9/125μm | OS2 9/125μm | OM4 50/125μm | OM4 50/125μm |
| Wavelength | 850/1300nm | 1310/1550nm | 1310/1550nm | 850/1300nm | 850/1300nm |
| Connector A | MMC-16 APC (Female) | MMC-16 APC (Female) | MMC-16 APC (Female) | MMC-16 APC (Female) | MMC-24 APC (Female) |
| Connector B | MMC-16 APC (Female) | MMC-16 APC (Female) | MTP®-16 APC (Female) | MTP®-16 APC (Female) | MTP®-24 UPC (Female) |
| Glass Fiber | Bend Insensitive Fiber | G.657.A1 | G.657.A1 | Bend Insensitive Fiber | Bend Insensitive Fiber |
| Min. Bend Radius (Optical Fiber) | 7.5mm | 10mm | 10mm | 7.5mm | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) | 20/10D (Dynamic/Static) | 20/10D (Dynamic/Static) | 20/10D (Dynamic/Static) | 20/10D (Dynamic/Static) |
| Insertion Loss | ≤0.35dB | ≤0.35dB | ≤0.35dB | ≤0.35dB | ≤0.35dB |
| Return Loss | ≥40dB | ≥60dB | ≥60dB | MMC≥40dB, MTP≥45dB | MMC≥40dB, MTP≥20dB |
| Attenuation | ≤2.3dB/km at 850nm, ≤0.6dB/km at 1300nm | ≤0.35dB/km at 1310nm, ≤0.21dB/km at 1550nm | ≤0.35dB/km at 1310nm, ≤0.21dB/km at 1550nm | ≤2.3dB/km at 850nm, ≤0.6dB/km at 1300nm | ≤2.3dB/km at 850nm, ≤0.6dB/km at 1300nm |
