MTP MPO Fiber Cable|US Conec MTP-MTP Trunk Cable 48Fiber 4*12C Multimode OM3 Female LSZH Custom Length

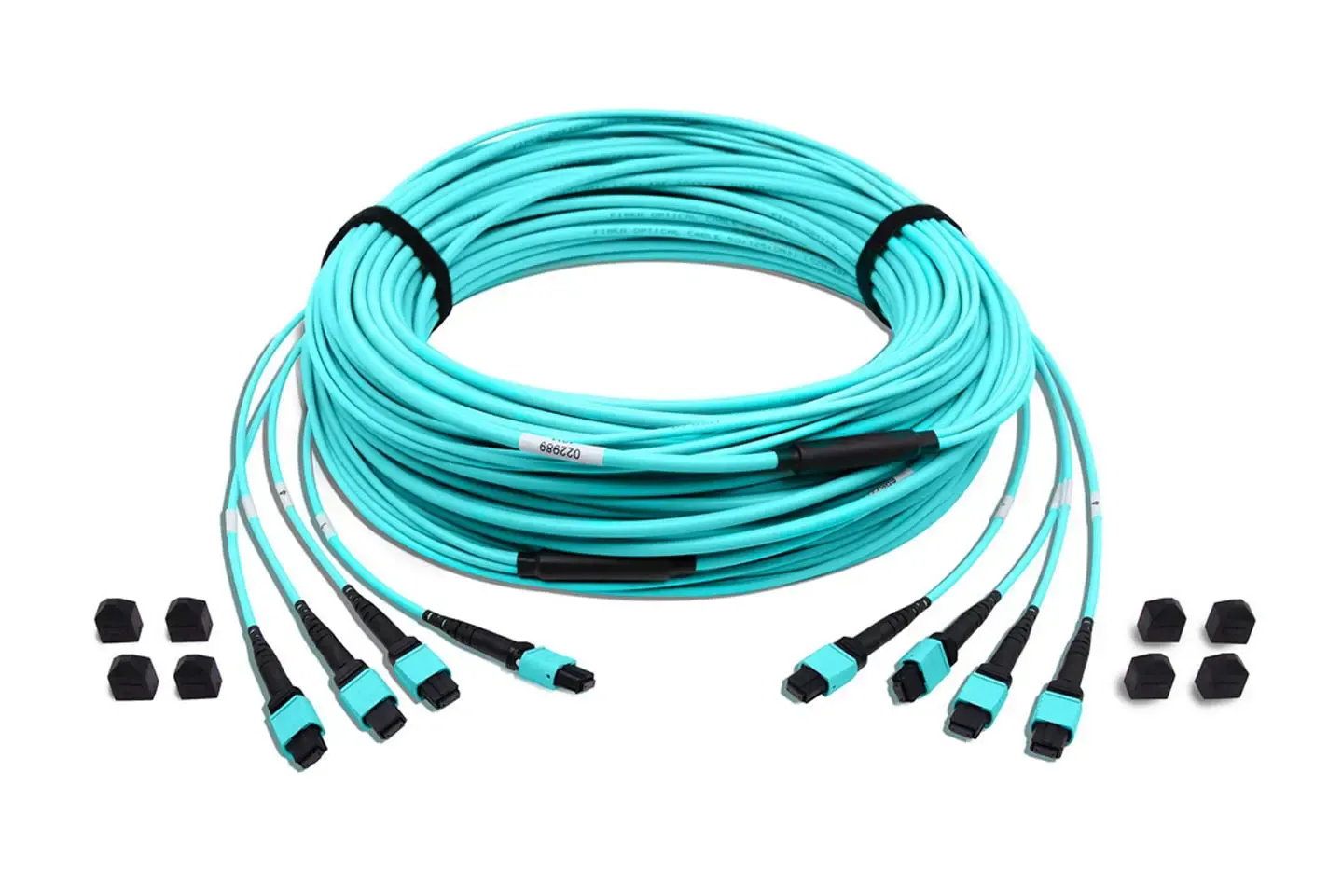

UnitekFiber’s 48Fiber MPO fiber cable is factory pre-terminated, equipped with premium 4x12 MPO connectors at both ends. Adopting elite low loss MPO connectors, this high performance MPO cable minimizes signal loss during transmission, supporting long distance transmission and multi-connection applications. MPO cable come with robust double LSZH jacket ensuring lasting durability and stable performance for long term use. The bundled structure reduces the quantity of multi-core fiber optic components, thereby decreasing cable clutter and lowering overall costs. Ideal for high density network deployments, 48Fiber MPO cables are widely utilized in back-end fiber optic backbone links.

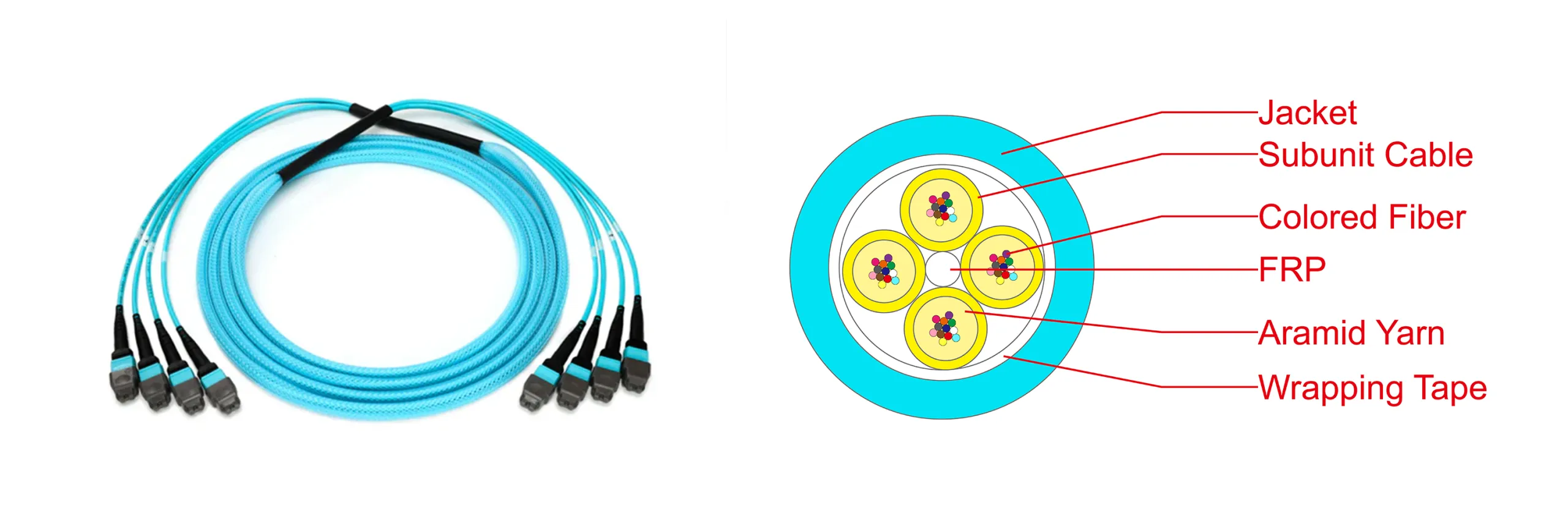

Structural Diagram of 48Fiber MPO to MPO Fiber Cable
At its center sits a FRP central strength member enhance tensile strength. It is surrounded by multiple 2.0mm/3.0mm subunits cable (each housing 12 fibers). Aramid Yarn fills the gaps between subunits and the central member to enhance impact and tensile resistance. LSZH of MPO cable provides flame retardancy protection. This compact design balances high fiber density with mechanical and environmental protection, making it ideal for high density wiring scenarios like data centers.
Multiple Advantage for Reliable Connectivity Solutions
MPO fiber cable offers efficient and reliable connectivity solutions for various optical transmission with multiple core advantages. Factory Pre-terminated MTP|MPO fiber cable offer a maximum optical performance and stable transmission quality. And the MPO|MTP patchcords are ready for deployment on arrival, which results in faster installation and less time spent on the job site. Meanwhile, UnitekFiber 48Fiber MPO|MTP cable allows a smaller bending radius by using Corning high bended sensitive fiber glass. All MPO|MTP cable will be 100% tested before shipping for low insertion loss and back reflection to eliminate transmission risks.
Widely Applcation of Multicore MPO|MTP Fiber Cable

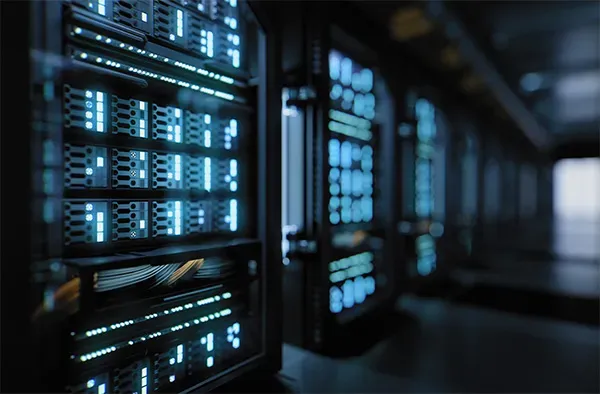

48Fiber MPO|MTP cable is designed for data centers, AI computing clusters, and other high growth sectors demanding 400G/800G high speed transmission, like head-end termination to a fiber backbone, termination of fiber rack systems, multi-floor deployment & intra-building backbones.
Offering Premium Customization Service
UnitekFiber, as a perfessional MPO|MTP cable manufacturer, we are offering to deliver fully customizable MPO trunk cable assemblies that align seamlessly with diverse project requirements. We offer flexible, custom length services to meet the needs of both compact data center deployments and long distance infrastructure construction. Furthermore, we offer a variety of outer sheaths, such as LSZH, PVC, and UL-certified OFNR and OFNR. We also provide a range of fiber types, covering single-mode fiber (G657A1/G655D or ect.) for high speed, long distance transmission and multimode fiber (OM3/OM4/OM5) for short distance, high bandwidth network applications such as enterprise LANs and cloud computing facilities.
